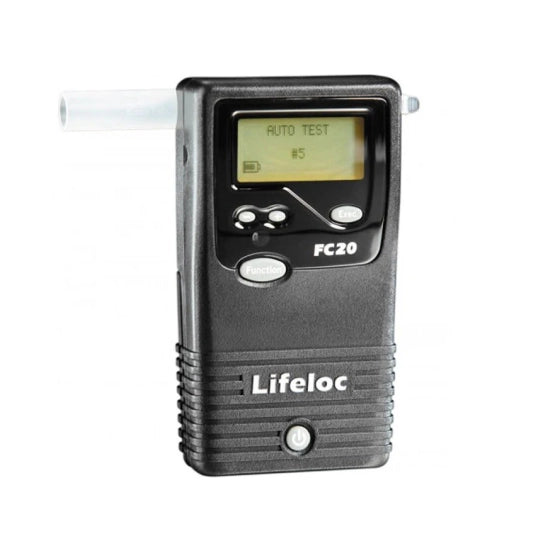

The Lifeloc FC20 is a US DOT (NHTSA) approved alcohol screening device. Utilizing a platinum fuel cell, this device delivers reliable and very accurate results time after time.
The Lifeloc FC20 includes both BAC testing and passive testing modes. Passive testing does not require a mouthpiece and is perfect for screening open containers.
Features & Benefits
- • Multiple sampling modes: Automatic, manual, and passive testing options.
- • Auto-adjusting backlit LCD for easy reading in any lighting condition.
- • EasyTab mouthpiece eliminates operator contact with the mouthpiece for hygienic testing.
- • Directed breath flow is directed away from the operator for safety and comfort.
- • Fastest response and recovery times of any breathalyzer on the market.
- • User prompts clearly step the operator through the testing process.
- • Very accurate 1" Platinum Fuel Cell Alcohol Sensor ensures reliable readings.
- • Long battery life: 160 hours of "on time" or up to 6,000 tests.
Advanced FC20 Features
- • On-board memory: Keeps a secure record of up to 500 past test results.
- • Date and time stamp for accurate, auditable record-keeping.
- • Calibration monitoring with lockout to prevent use of an out-of-calibration device.
- • Breath volume measurement to ensure a valid, deep-lung sample.
- • Adjustable Auto Shut-Off to conserve battery life.
- • Data Input Fields for adding subject or operator information.
- • Computer Interface for seamless data transfer.
- • Printing Capability for immediate hard-copy results.
- • Keyboard Option for enhanced data entry.
Technical Specifications
| Sensor Type | Fuel Cell |
| DOT Approved | Yes |
| Air Flow Sensor | Yes |
| Detection Range | 0.00 - 0.60% |
| Accuracy | +/- 0.005% @ 0.10% BAC |
| Display | 4 Digit LCD |
| Test Memory | Yes (500 records) |
| Date and Time Stamp | Yes |
| Printing Capable | No |
| PC Interface | No |
| Mouthpiece Required | Yes |
| Included Mouthpieces | 10 |
| Calibration | Send-Away Calibration |
| Power Supply | 4 x AA |
| Batteries Included | Yes |
| Car Adapter | No |
| AC Adapter | No |

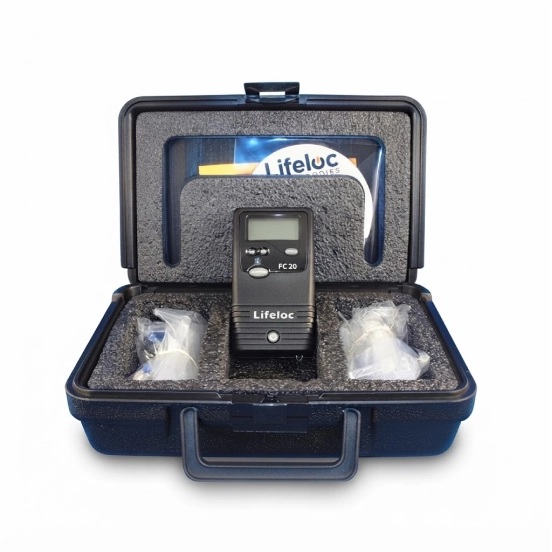

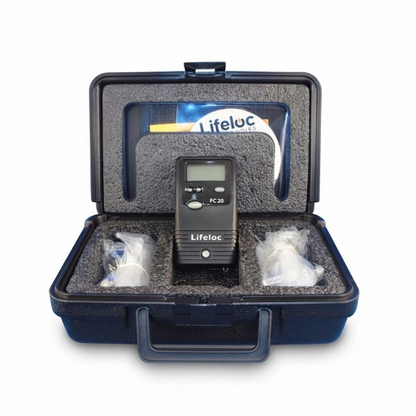

| Hard Case | Yes |
| Soft Case | No |
| Size (WxHxD) | 2.6" x 5" x 1.25" (66 x 127 x 33mm) |
| Weight | 8 oz. (226g) |
